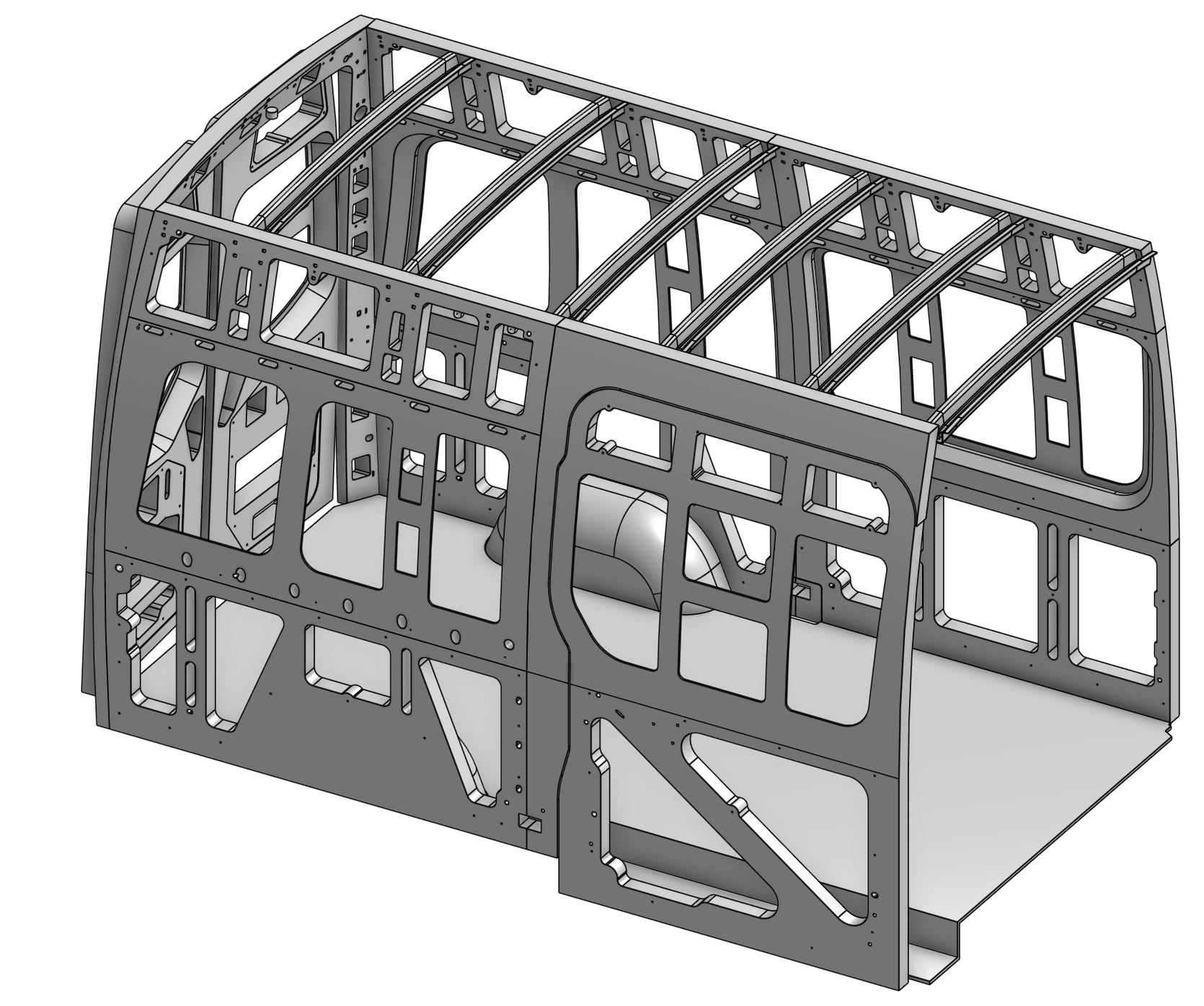

Parametrically modeled off a 2021 Sprinter 144 chassis (not a lidar scan)

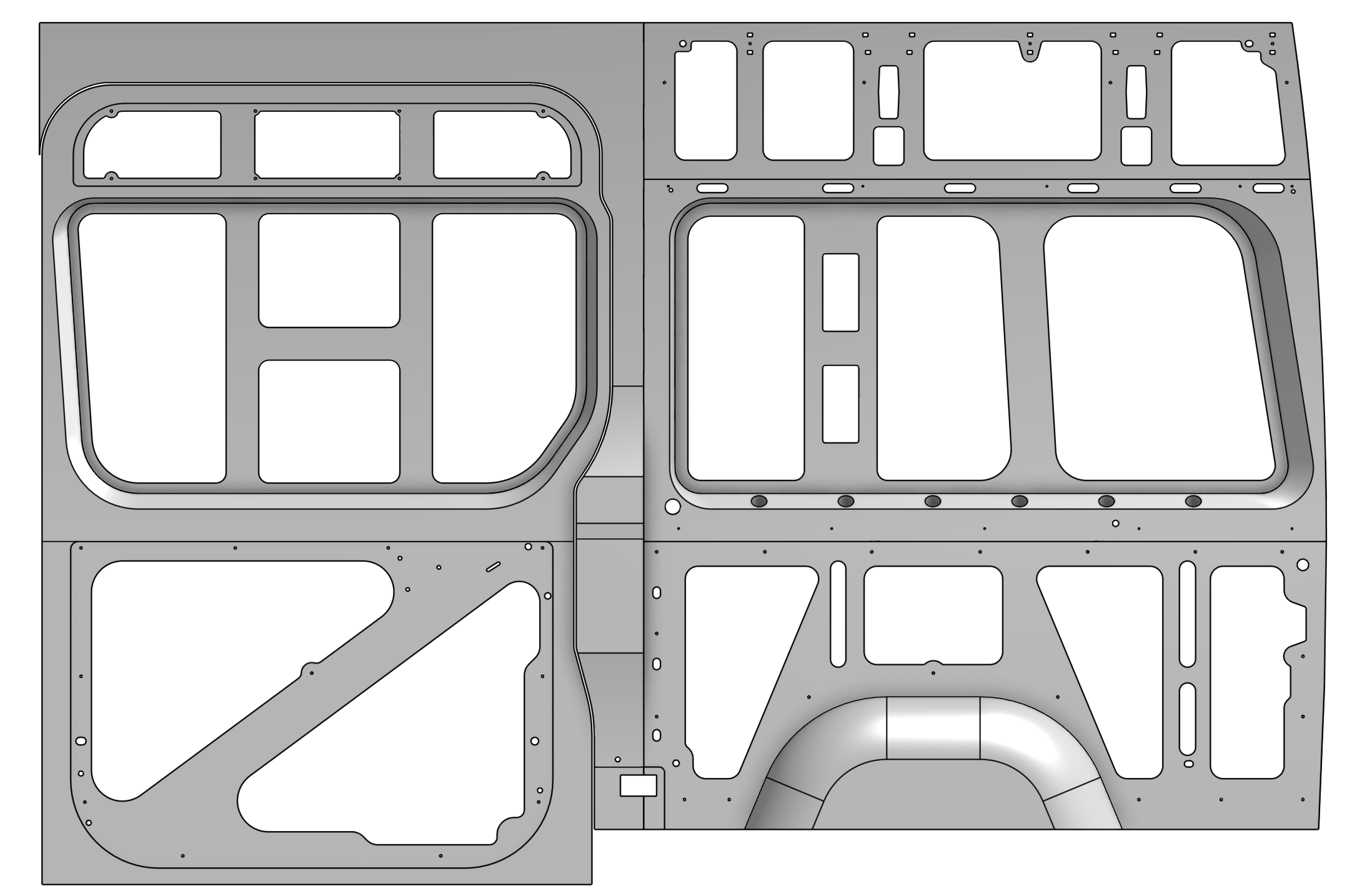

All factory holes are shown and located to within .25"

Great for getting quick reference dimensions, but use caution, as things might not be 100% spot on (1/4" accuracy)

Also great for determining how to position items for easy mounting with respect to the van structure

There are free online .stp file viewers available here: https://viewer.autodesk.com/

.stp and .stl files provided

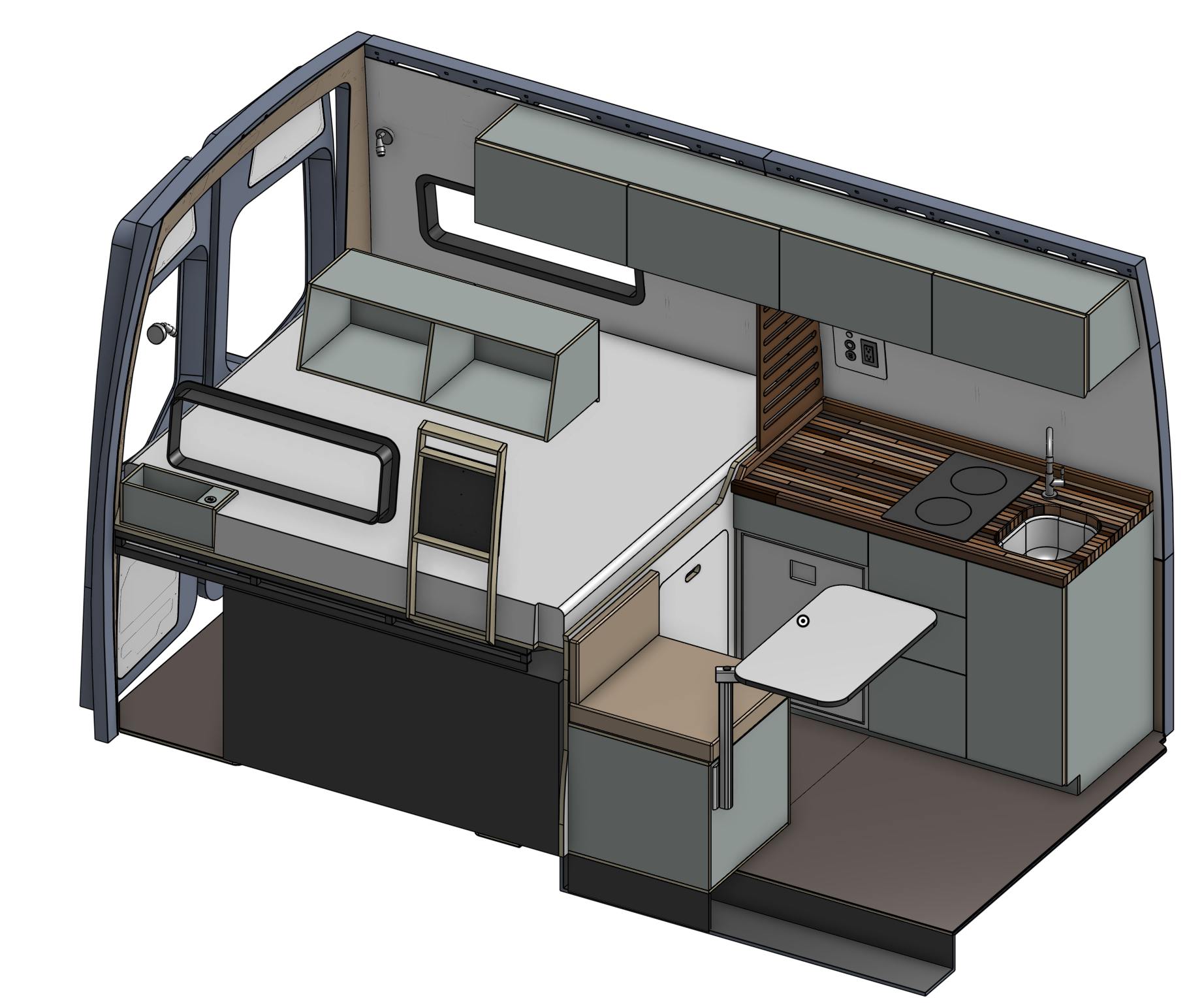

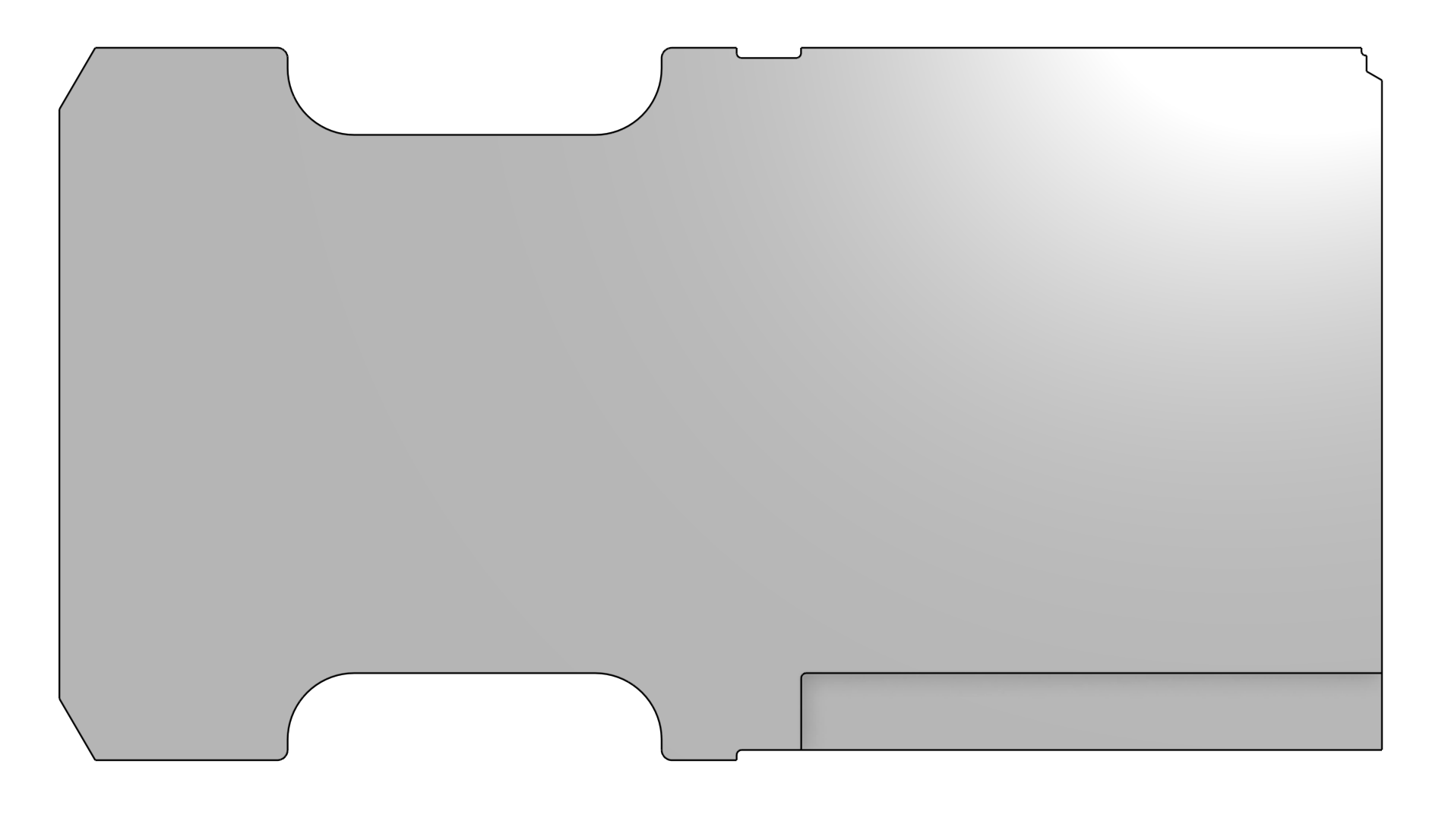

This model is of the cargo area only. Images depicted with cabinetry and components are for artistic reference only.
